Pneumatic Ball Transfer Rails – High Pressure
Units & rails are all fitted with a T connector for ease of integration. High & low pressure tubing, connectors & end-plugs. Configure together with switches & regulators to provide versatile control. Appropriate blanking plugs are automatically supplied with each order. Alternative ball materials & sizes available.
PB22, PB28 & PB36
PW22, PW28 & PW36
Switch measurements:
| Part | Length | LIFT (LB)LIFT (KG) | PsiBar | A | B | C | D | X | Y | $ from |  Files |  |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PB22/300 | 11.811 300 | 860 390 | 87 6 | 0.847 21.5 | 1.496 38 | 1.476 37.5 | 0.590 15 | 0.138 3.5 | 0.276 7 | $1,290.91 | ||
| PW22/300 | 11.811 300 | 860 390 | 87 6 | 0.847 21.5 | 1.496 38 | 1.476 37.5 | 0.590 15 | 0.138 3.5 | 0.276 7 | $1,193.44 | ||
| PB22/600 | 23.622 600 | 1720 780 | 87 6 | 0.847 21.5 | 1.496 38 | 1.476 37.5 | 0.590 15 | 0.138 3.5 | 0.591 15 | $1,614.95 | ||
| PW22/600 | 23.622 600 | 1720 780 | 87 6 | 0.847 21.5 | 1.496 38 | 1.476 37.5 | 0.590 15 | 0.138 3.5 | 0.591 15 | $1,327.79 | ||
| PB22/800 | 31.496 800 | 2293 1040 | 87 6 | 0.847 21.5 | 1.496 38 | 1.476 37.5 | 0.590 15 | 0.138 3.5 | 0.787 20 | $2,020.67 | ||
| PW22/800 | 31.496 800 | 2293 1040 | 87 6 | 0.847 21.5 | 1.496 38 | 1.476 37.5 | 0.590 15 | 0.138 3.5 | 0.787 20 | $1,477.95 | ||
| PB22/1000 | 39.370 1000 | 2290 1300 | 87 6 | 0.847 21.5 | 1.496 38 | 1.476 37.5 | 0.590 15 | 0.138 3.5 | 0.984 25 | $2,529.13 | ||
| PW22/1000 | 39.370 1000 | 2290 1300 | 87 6 | 0.847 21.5 | 1.496 38 | 1.476 37.5 | 0.590 15 | 0.138 3.5 | 0.984 25 | $1,643.94 | ||
| PB28/300 | 11.811 300 | 1120 510 | 87 6 | 1.063 27 | 1.850 47 | 1.772 45 | 0.630 16 | 0.157 4 | 0.276 7 | $1,290.91 | ||
| PW28/300 | 11.811 300 | 1120 510 | 87 6 | 1.063 27 | 1.850 47 | 1.772 45 | 0.630 16 | 0.157 4 | 0.276 7 | $1,841.52 | ||
| PB28/600 | 23.622 600 | 2250 1020 | 87 6 | 1.063 27 | 1.850 47 | 1.772 45 | 0.630 16 | 0.157 4 | 0.591 15 | $1,614.95 | ||
| PW28/600 | 23.622 600 | 2250 1020 | 87 6 | 1.063 27 | 1.850 47 | 1.772 45 | 0.630 16 | 0.157 4 | 0.591 15 | $2,047.01 | ||
| PB28/800 | 31.496 800 | 2300 1360 | 87 6 | 1.063 27 | 1.850 47 | 1.772 45 | 0.630 16 | 0.157 4 | 0.787 20 | $2,020.67 | ||
| PW28/800 | 31.496 800 | 2300 1360 | 87 6 | 1.063 27 | 1.850 47 | 1.772 45 | 0.630 16 | 0.157 4 | 0.787 20 | $2,276.22 | ||
| PB28/1000 | 39.370 1000 | 3750 1700 | 87 6 | 1.063 27 | 1.850 47 | 1.772 45 | 0.630 16 | 0.157 4 | 0.984 25 | $2,529.13 | ||
| PW28/1000 | 39.370 1000 | 3750 1700 | 87 6 | 1.063 27 | 1.850 47 | 1.772 45 | 0.630 16 | 0.157 4 | 0.984 25 | $2,529.92 | ||
| PB36/300 | 11.811 300 | 1650 750 | 87 6 | 1.260 32 | 2.244 57 | 2.244 57 | 0.787 20 | 0.177 4.5 | 0.276 7 | $1,580.70 | ||
| PW36/300 | 11.811 300 | 1650 750 | 87 6 | 1.260 32 | 2.244 57 | 2.244 57 | 0.787 20 | 0.177 4.5 | 0.276 7 | $2,386.87 | ||
| PB36/600 | 23.622 600 | 3300 1500 | 87 6 | 1.260 32 | 2.244 57 | 2.244 57 | 0.787 20 | 0.177 4.5 | 0.591 15 | $1,759.86 | ||
| PW36/600 | 23.622 600 | 3300 1500 | 87 6 | 1.260 32 | 2.244 57 | 2.244 57 | 0.787 20 | 0.177 4.5 | 0.591 15 | $2,652.96 | ||
| PB36/800 | 31.496 800 | 4409 2000 | 87 6 | 1.260 32 | 2.244 57 | 2.244 57 | 0.787 20 | 0.177 4.5 | 0.787 20 | $2,199.81 | ||
| PW36/800 | 31.496 800 | 4409 2000 | 87 6 | 1.260 32 | 2.244 57 | 2.244 57 | 0.787 20 | 0.177 4.5 | 0.787 20 | $2,948.02 | ||
| PB36/1000 | 39.370 1000 | 5510 2500 | 87 6 | 1.260 32 | 2.244 57 | 2.244 57 | 0.787 20 | 0.177 4.5 | 0.984 25 | $2,750.43 | ||
| PW36/1000 | 39.370 1000 | 5510 2500 | 87 6 | 1.260 32 | 2.244 57 | 2.244 57 | 0.787 20 | 0.177 4.5 | 0.984 25 | $3,279.18 |

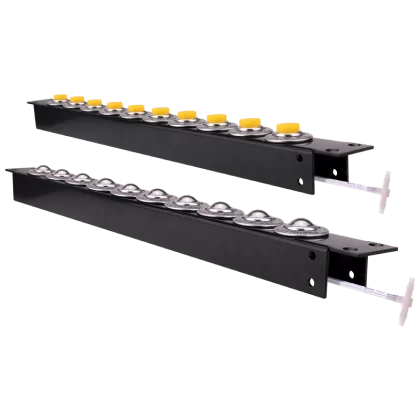

Pneumatic Ball Transfer Rails – Low Pressure
In low pressure systems, tubing length should be extended or altered using optional in-line connectors (TC4) as the tubing & fittings are not designed to be separated once assembled.
Appropriate blanking plugs are automatically supplied with each order.
Alternative ball materials & sizes available.

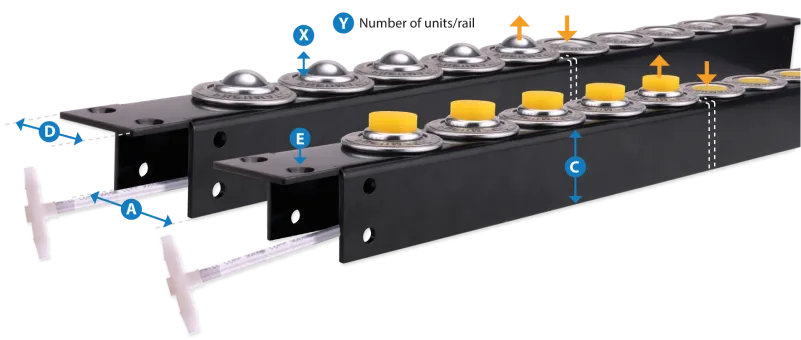

Switch measurements:
| Part | Length | LIFT (LB)LIFT (KG) | PsiBar | A | B | C | D | E | X | Y | $ from | Files | | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PB25/400 | Ball | 15.748 400 | 330 150 | 50 3.4 | 1.969 50 | 1.803 45.8 | 1.535 39 | 0.984 25 | 2 x 0.276Ø 2 x 7Ø | 0.375 9.5 | 0.236 6 | $533.61 | ||
| PB25/600 | Ball | 23.622 600 | 550 250 | 50 3.4 | 1.969 50 | 1.803 45.8 | 1.535 39 | 0.984 25 | 2 x 0.276Ø 2 x 7Ø | 0.375 9.5 | 0.394 10 | $841.56 | ||
| PS25/400 | Stop | 15.748 400 | 330 150 | 50 3.4 | 1.969 50 | 1.803 45.8 | 1.535 39 | 0.984 25 | 2 x 0.276Ø 2 x 7Ø | 0.437 11.1 | 0.236 6 | $1,154.47 | ||
| PS25/600 | Stop | 23.622 600 | 550 250 | 50 3.4 | 1.969 50 | 1.803 45.8 | 1.535 39 | 0.984 25 | 2 x 0.276Ø 2 x 7Ø | 0.437 11.1 | 0.394 10 | $954.40 |
Accessories
Select pressure:
-

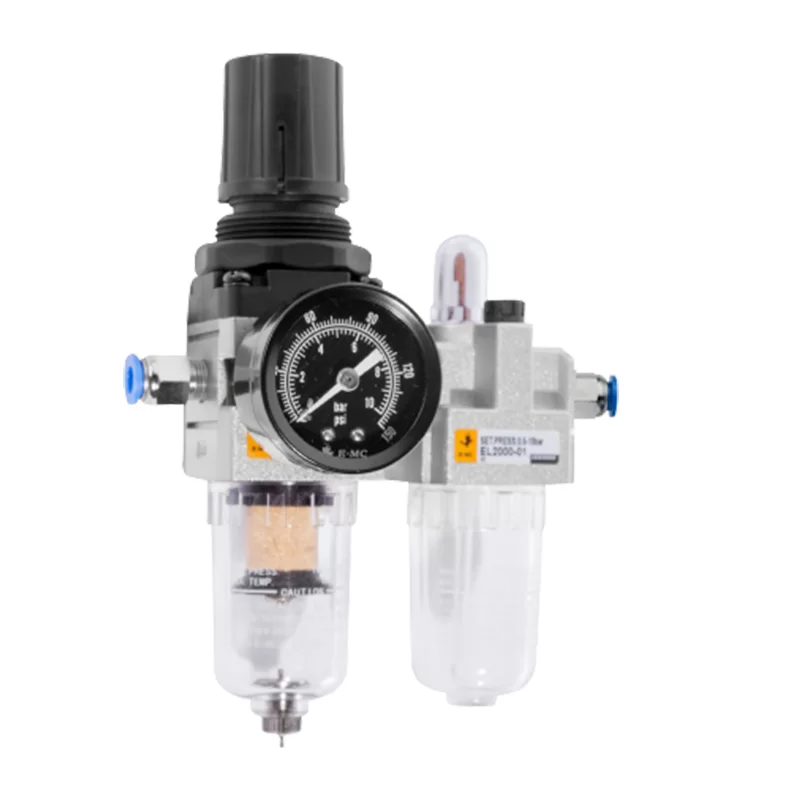

High & low pressure Regulator Valve
AV6
From $112.10 -
High & low pressure 3-Way Switch
AS7
From $100.45 -
Low pressure Tubing (3m roll)
TP4
From $7.36 -

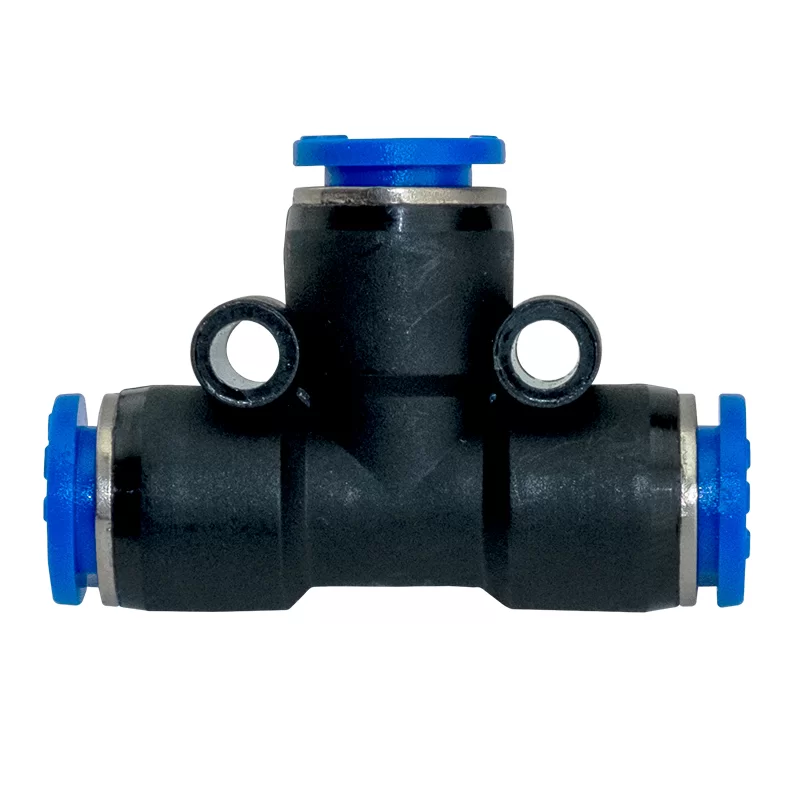

Low pressure 3-Way Connector
TC4
From $7.80 -

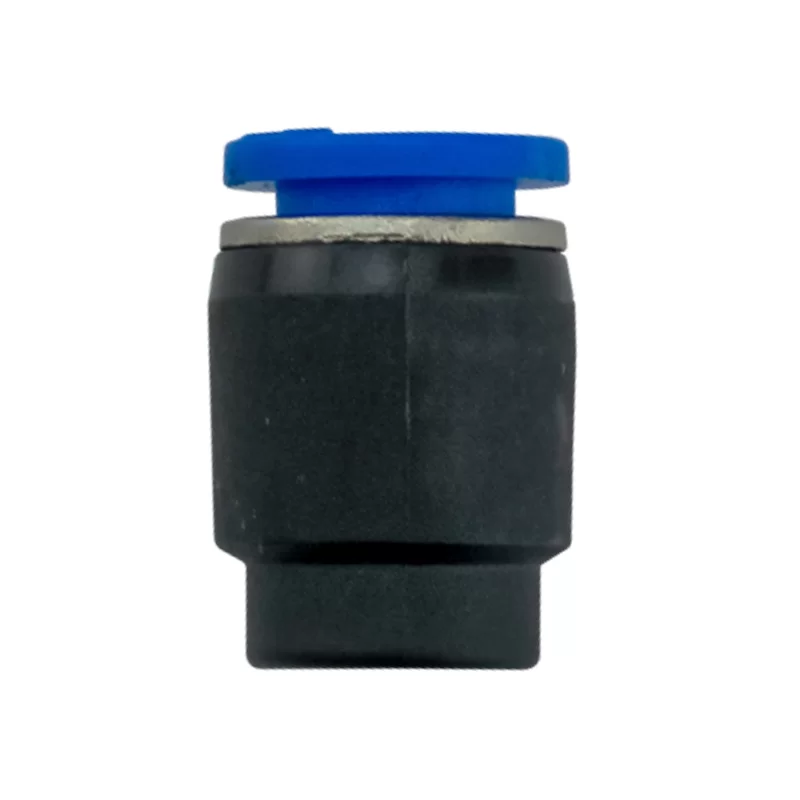

Low pressure Blanking Plug
TB4
From $3.90 -

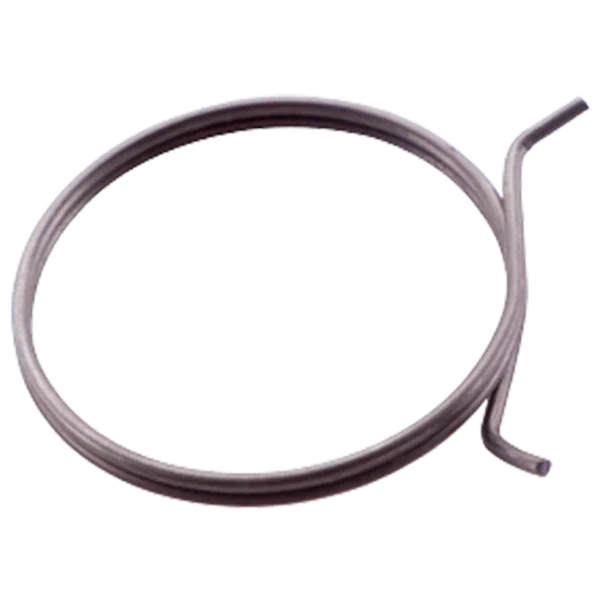

Low pressure Fixing Clip
PF2
From $6.82
Low pressure

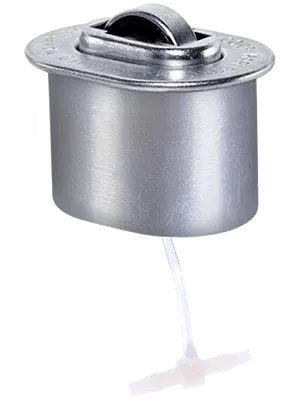

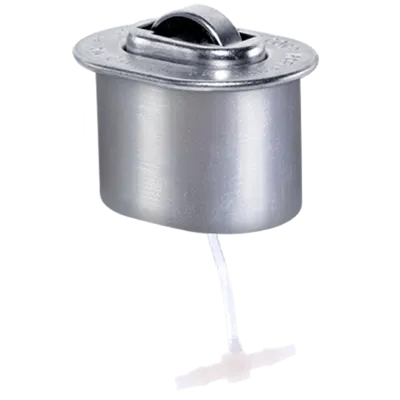

Low pressure Pneumatic Ball Transfers, Stops, Linear Rollers & Rails

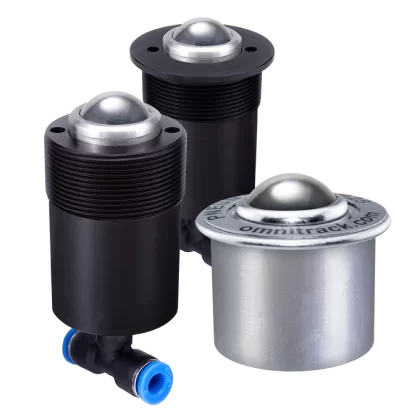

- Pneumatic Ball units allow air-driven positioning of conveyed item & may be individually arranged for a flexible, modular conveying plane.

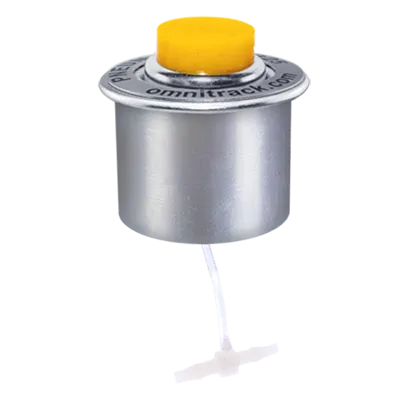

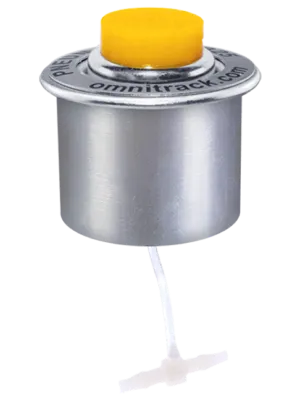

- PS25 positioning stops are pneumatically activated to stop & hold the position of the conveyed item.
- Units rated with a maximum air supply pressure of ≤3.4 bar support loads of up to 200 Kgs/rail, whilst those rated at ≤6 bar air supply support up to 2500 Kgs/rail.
