Ball Transfer Rails

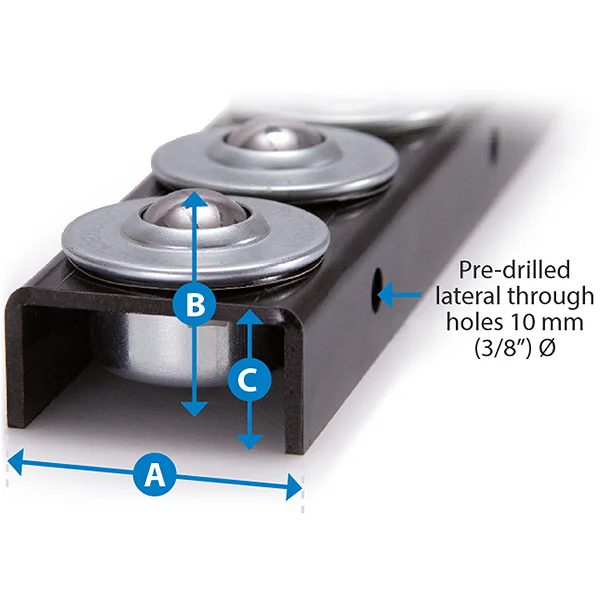

Switch measurements:

Part	Rail Length	number of units	Spacing	Ball Ø	Unit	MAX LOAD (LB)MAX LOAD (KG)	A	B	C	$ from	Files
R15-400	15.748 400	10	1.575 40	0.625 15	130 60	1300 600	1.575 40	1.358 34.5	0.984 25	$154.62	PDF Step
R15-600	23.622 600	15	1.575 40	0.625 15	130 60	1950 900	1.575 40	1.358 34.5	0.984 25	$231.89	PDF Step
R22-400	15.748 400	8	1.969 50	0.875 22	350 160	2800 1280	1.969 50	1.370 34.8	0.984 25	$226.18	PDF Step
R22-600	23.622 600	12	1.969 50	0.875 22	350 160	4200 1920	1.969 50	1.370 34.8	0.984 25	$339.24	PDF Step
R30-400	15.748 400	7	2.264 58	1.188 30	620 280	4340 1960	2.362 60	1.528 38.8	0.984 25	$265.27	PDF Step
R30-600	23.622 600	10	2.362 60	1.188 30	620 280	6200 2080	2.362 60	1.528 38.8	0.984 25	$408.56	PDF Step
R15-400A	15.748 400	10	1.575 40	0.625 15	130 60	1300 600	1.575 40	1.358 34.5	0.984 25	$337.49	PDF Step
R15-600A	23.622 600	15	1.575 40	0.625 15	130 60	1950 900	1.575 40	1.358 34.5	0.984 25	$322.11	PDF Step
R22-400A	15.748 400	8	1.969 50	0.875 22	350 160	2800 1280	1.969 50	1.370 34.8	0.984 25	$301.19	PDF Step
R22-600A	23.622 600	12	1.969 50	0.875 22	350 160	4200 1920	1.969 50	1.370 34.8	0.984 25	$451.74	PDF Step
R30-400A	15.748 400	7	2.264 58	1.188 30	620 280	4340 1960	2.362 60	1.528 38.8	0.984 25	$382.86	PDF Step
R30-600A	23.622 600	10	2.362 60	1.188 30	620 280	6200 2800	2.362 60	1.528 38.8	0.984 25	$589.67	PDF Step
R15-400D	15.748 400	10	1.575 40	0.625 15	22 10	220 100	1.575 40	1.358 34.5	0.984 25	$273.83	PDF Step
R15-600D	23.622 600	15	1.575 40	0.625 15	22 10	330 150	1.575 40	1.358 34.5	0.984 25	$410.70	PDF Step
R22-400D	15.748 400	8	1.969 50	0.875 22	44 20	352 160	1.969 50	1.370 34.8	0.984 25	$396.14	PDF Step
R22-600D	23.622 600	12	1.969 50	0.875 22	44 20	528 240	1.969 50	1.370 34.8	0.984 25	$594.16	PDF Step
R30-400D	15.748 400	7	2.264 58	1.188 30	55 25	385 175	2.362 60	1.528 38.8	0.984 25	$951.10	PDF Step
R30-600D	23.622 600	10	2.362 60	1.188 30	55 25	550 250	2.362 60	1.528 38.8	0.984 25	$1,464.88	PDF Step
R15-400SS	15.748 400	10	1.575 40	0.625 15	90 40	900 400	1.575 40	1.358 34.5	0.984 25	$431.84	PDF Step
R15-600SS	23.622 600	15	1.575 40	0.625 15	90 40	1350 600	1.575 40	1.358 34.5	0.984 25	$647.70	PDF Step
R22-400SS	15.748 400	8	1.969 50	0.875 22	200 90	1600 720	1.969 50	1.370 34.8	0.984 25	$433.83	PDF Step
R22-600SS	23.622 600	12	1.969 50	0.875 22	200 90	2400 1080	1.969 50	1.370 34.8	0.984 25	$650.67	PDF Step
R30-400SS	15.748 400	7	2.264 58	1.188 30	450 200	3150 1400	2.362 60	1.528 38.8	0.984 25	$302.95	PDF Step
R30-600SS	23.622 600	10	2.362 60	1.188 30	450 200	4500 2000	2.362 60	1.528 38.8	0.984 25	$466.60	PDF Step

Omnitrack Ball Transfer Rails

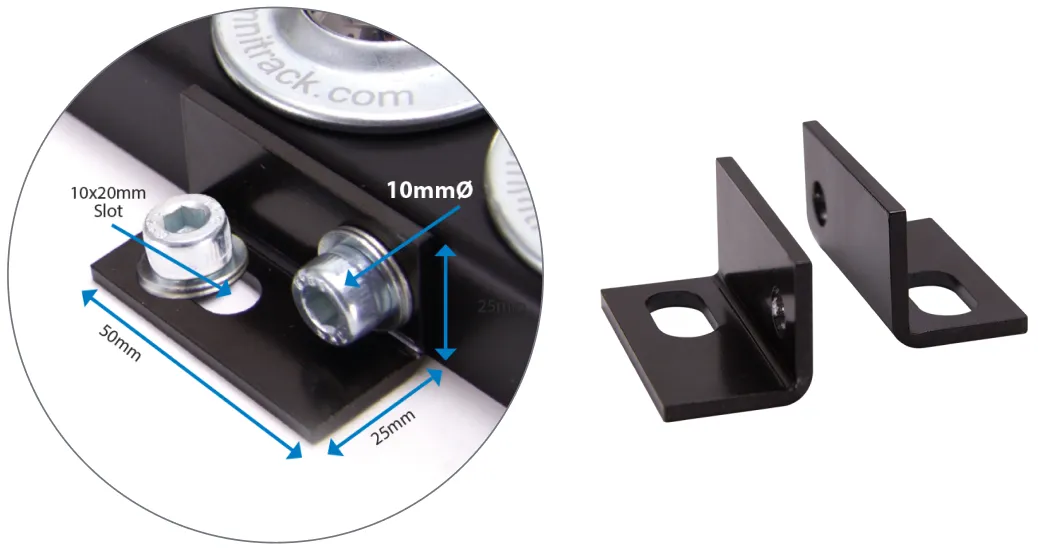

Construct a bespoke & flexible conveying plane by configuring ball transfer rails to your application. Ideal in live storage applications, the rails can be installed individually using optional fixing brackets or bolted together either with or without optional spacer tubes to form a ball transfer platform. 15.748″ & 23.622″ standard lengths for rapid integration within existing conveyor roller installations. Ball transfer units available with alternative material upgrade options.
