Pneumatic Rollers & Ball Transfer Units
Pneumatic Ball Transfer Units allow air-driven positioning of the conveyed item & may be individually arranged for a flexible, modular conveying plane.
Our Pneumatic Linear Rollers are all fitted with a T connector for ease of integration. High & low pressure tubing, connectors & end-plugs. Configure together with switches & regulators to provide versatile control.
In low pressure systems, tubing length should be extended or altered using optional in-line connectors (TC4) as the tubing & fittings are not designed to be separated once assembled.
Appropriate blanking plugs are automatically supplied with each order.
Alternative ball materials & sizes available.
PW25
Low pressure

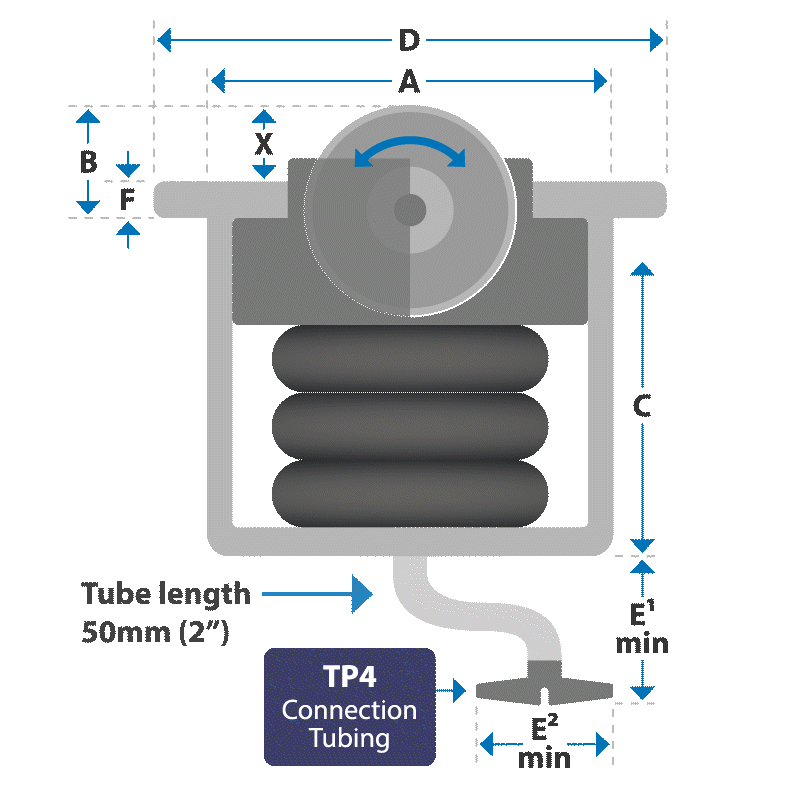

Switch measurements:
| Part | Lift (lb)Lift (kg) | PSIBAR | A | B | C | D | E1 MIN | E2 MIN | F | X | £ from |  Files |  |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PW25 | 65 30 | 50 3.4 | 1.78 x 1.2 ❋45.2 x 30.5 ❋ | 0.472 12 | 1.256 31.9 | 2.10 x 1.53 ❋53.4 x 38.9 ❋ | 0.591 15 | 1.457 37 | 0.1 2.54 | 0.375 9.5 | £48.81 |
Accessories
-
High & low pressure Regulator Valve
AV6
From £68.72 -
High & low pressure 3-Way Switch
AS7
From £61.59 - High & low pressure
2-Way Switch
AS6
From £48.59 -
Low pressure Tubing (3m roll)
TP4
From £7.36
High pressure
Low pressure
Low pressure
Low pressure
High pressure Pneumatic Ball Transfers, Stops, Linear Rollers & Rails
- Pneumatic Ball units allow air-driven positioning of conveyed item & may be individually arranged for a flexible, modular conveying plane.
- PS25 positioning stops are pneumatically activated to stop & hold the position of the conveyed item.
- Units rated with a maximum air supply pressure of ≤3.4 bar support loads of up to 200 Kgs/rail, whilst those rated at ≤6 bar air supply support up to 2500 Kgs/rail.
