Efficient Ball Transfer Rails for Custom Conveying Solutions
Switch measurements:
| Part | Rail Length | number of units | Spacing | Ball Ø | Unit | MAX LOAD (LB)MAX LOAD (KG) | A | B | C | $ from |  Files |  |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R15-400 | 15.748 400 | 10 | 1.575 40 | 0.625 15 | 130 60 | 1300 600 | 1.575 40 | 1.358 34.5 | 0.984 25 | $253.15 | Step | |
| R15-600 | 23.622 600 | 15 | 1.575 40 | 0.625 15 | 130 60 | 1950 900 | 1.575 40 | 1.358 34.5 | 0.984 25 | $379.69 | Step | |
| R22-400 | 15.748 400 | 8 | 1.969 50 | 0.875 22 | 350 160 | 2800 1280 | 1.969 50 | 1.370 34.8 | 0.984 25 | $370.35 | Step | |
| R22-600 | 23.622 600 | 12 | 1.969 50 | 0.875 22 | 350 160 | 4200 1920 | 1.969 50 | 1.370 34.8 | 0.984 25 | $555.44 | Step | |
| R30-400 | 15.748 400 | 7 | 2.264 58 | 1.188 30 | 620 280 | 4340 1960 | 2.362 60 | 1.528 38.8 | 0.984 25 | $434.33 | Step | |
| R30-600 | 23.622 600 | 10 | 2.362 60 | 1.188 30 | 620 280 | 6200 2080 | 2.362 60 | 1.528 38.8 | 0.984 25 | $620.48 | Step | |
| R15-400A | 15.748 400 | 10 | 1.575 40 | 0.625 15 | 130 60 | 1300 600 | 1.575 40 | 1.358 34.5 | 0.984 25 | $557.53 | Step | |
| R15-600A | 23.622 600 | 15 | 1.575 40 | 0.625 15 | 130 60 | 1950 900 | 1.575 40 | 1.358 34.5 | 0.984 25 | $527.39 | Step | |
| R22-400A | 15.748 400 | 8 | 1.969 50 | 0.875 22 | 350 160 | 2800 1280 | 1.969 50 | 1.370 34.8 | 0.984 25 | $493.14 | Step | |
| R22-600A | 23.622 600 | 12 | 1.969 50 | 0.875 22 | 350 160 | 4200 1920 | 1.969 50 | 1.370 34.8 | 0.984 25 | $739.64 | Step | |
| R30-400A | 15.748 400 | 7 | 2.264 58 | 1.188 30 | 620 280 | 4340 1960 | 2.362 60 | 1.528 38.8 | 0.984 25 | $626.85 | Step | |
| R30-600A | 23.622 600 | 10 | 2.362 60 | 1.188 30 | 620 280 | 6200 2800 | 2.362 60 | 1.528 38.8 | 0.984 25 | $895.53 | Step | |
| R15-400D | 15.748 400 | 10 | 1.575 40 | 0.625 15 | 22 10 | 220 100 | 1.575 40 | 1.358 34.5 | 0.984 25 | $448.34 | Step | |
| R15-600D | 23.622 600 | 15 | 1.575 40 | 0.625 15 | 22 10 | 330 150 | 1.575 40 | 1.358 34.5 | 0.984 25 | $672.45 | Step | |
| R22-400D | 15.748 400 | 8 | 1.969 50 | 0.875 22 | 44 20 | 352 160 | 1.969 50 | 1.370 34.8 | 0.984 25 | $648.60 | Step | |
| R22-600D | 23.622 600 | 12 | 1.969 50 | 0.875 22 | 44 20 | 528 240 | 1.969 50 | 1.370 34.8 | 0.984 25 | $972.82 | Step | |
| R30-400D | 15.748 400 | 7 | 2.264 58 | 1.188 30 | 55 25 | 385 175 | 2.362 60 | 1.528 38.8 | 0.984 25 | $1,557.26 | Step | |
| R30-600D | 23.622 600 | 10 | 2.362 60 | 1.188 30 | 55 25 | 550 250 | 2.362 60 | 1.528 38.8 | 0.984 25 | $2,224.70 | Step | |
| R15-400SS | 15.748 400 | 10 | 1.575 40 | 0.625 15 | 90 40 | 900 400 | 1.575 40 | 1.358 34.5 | 0.984 25 | $333.76 | Step | |
| R15-600SS | 23.622 600 | 15 | 1.575 40 | 0.625 15 | 90 40 | 1350 600 | 1.575 40 | 1.358 34.5 | 0.984 25 | $500.60 | Step | |
| R22-400SS | 15.748 400 | 8 | 1.969 50 | 0.875 22 | 200 90 | 1600 720 | 1.969 50 | 1.370 34.8 | 0.984 25 | $335.32 | Step | |
| R22-600SS | 23.622 600 | 12 | 1.969 50 | 0.875 22 | 200 90 | 2400 1080 | 1.969 50 | 1.370 34.8 | 0.984 25 | $502.92 | Step | |
| R30-400SS | 15.748 400 | 7 | 2.264 58 | 1.188 30 | 450 200 | 3150 1400 | 2.362 60 | 1.528 38.8 | 0.984 25 | $496.02 | Step | |
| R30-600SS | 23.622 600 | 10 | 2.362 60 | 1.188 30 | 450 200 | 4500 2000 | 2.362 60 | 1.528 38.8 | 0.984 25 | $708.62 | Step |

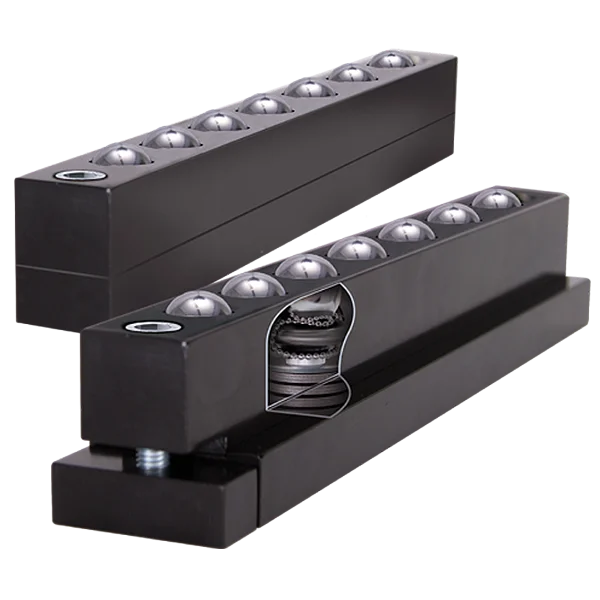

Omnitrack Ball Transfer Rails
Construct a bespoke & flexible conveying plane by configuring ball transfer rails to your application. Ideal in live storage applications, the rails can be installed individually using optional fixing brackets or bolted together either with or without optional spacer tubes to form a ball transfer platform. 400 mm & 600 mm standard lengths for rapid integration within existing conveyor roller installations. Ball transfer units available with alternative material upgrade options.
Fixing Brackets
Optional – Part # RB-1 (each)
Spacer Tubes
Join or space rails using 10 mm (3/8”) Ø through holes. Spacer tubes cut to order.
